RSeat N1 Alcantara

Price Includes 20% VAT

Frame Colour

Please note, all RSeat orders have 10-14 day delivery time

The RSeat N1 Alcantara includes the RSeat N1 frame with the RSeat Bucket Seat finished in Alcantara. The RSeat N1 is a flagship rig of the superb RSeat Gen 1 range, incorporating both strength and unique design into one fantastic package.

If you want the latest generation RSeat rigs, please see the new Gen 2 flagship rig, the RSeat C1


  • NEW! Pedals with sliders for easy adjustment
  • Support PC, PS3, PS4, XBOX 360, XBOX One
  • Applicable for users from 127cm (4’2″) up to 200cm+ (6’67″+)
  • Seat carry weight up to 140kg (308 lbs)
  • Seating position Rally/GT
  • Modular Frame (You can upgrade with features)
  • Seat Sliders Included
  • Footprint dimensions: L x W x H 1815 x 640 mm. x 1305 mm. (71.45” x 25.2” x 51.4”)
  • All tools and screws to attach your wheel and pedals are provided.
  • 2 year Warranty on all RSeat Manufactured components including chassis and seat
  • Packaging Size Box 1: L x W x H 185 x 65 x H30cm (72.84" x 25.6" x 11.8" ) G.W 70kg (154lbs)
  • Packaging Size Box 2: L x W x H 97 x 64 x H48cm (38.2" x 25.2" x 18.9" ) G.W30kg (66lbs)
  • Made in EU


Made of composite materials finished in exquisite Alcantara. Seat is manufactured in our Factory in EU

  • Seat shell made of composite materials and finished in gloss black.
  • Thick foam to prevent pain from long races
  • Improved design for comfort
  • Seat belt support
  • Stitched logo
  • For users with up to 106-112cm (42-44 inch) waist
  • N1 Allow to recline the entire seat ±4°
  • Seat sliders allow to adjust it front-backwards ±120mm (4.72inch)
  • Highly wear resistant suitable for game race centers.


The N1 frame is fully adjustable. You can slide the seat front-back using rails, slide the pedals front-back using rails,  rise or lower the wheel and fix by 4xM10 screws for stability, tilt the wheel, angle adjust the pedals, tilt the seat, align the chassis with the floor using 8 adjustable legs (all tools and fasteners provided for adjustment)


Made of Laser cut carbon steel and CNC bend round tubes

Comes in Black matte powder coat paint.

  • Frame step on the ground by 8 adjustable legs (37mm diameter each).
  • Casters Ready (M8 Thread)
  • Made of Mandrel Bend carbon steel tubes NPS 1-1/2 (Din 48.3mm)
  • Total height (with the seat): 1305 mm (51.4”)
  • Total width: Rear: 640 mm (25.2”)
  • Length: 1815 mm. (71.45”)
  • Pedal plate width 364 mm. (13.62”)
  • Pedal plate adjust from full flat up to 60°
  • Wheel mounting plate allow to adjust height of the wheel ±120 mm (4.72”)
  • Slide pedals front-backwards with sliders (rails) ±120mm (4.72inch)
  • Slide The seat front-backwards with sliders (rails) ±120mm (4.72inch)
  • Net weight: 65 kg (143 lbs)
  • Gross weight 70 kg (154 lbs) The N1 with the packaging.
  • Ready for upgrades

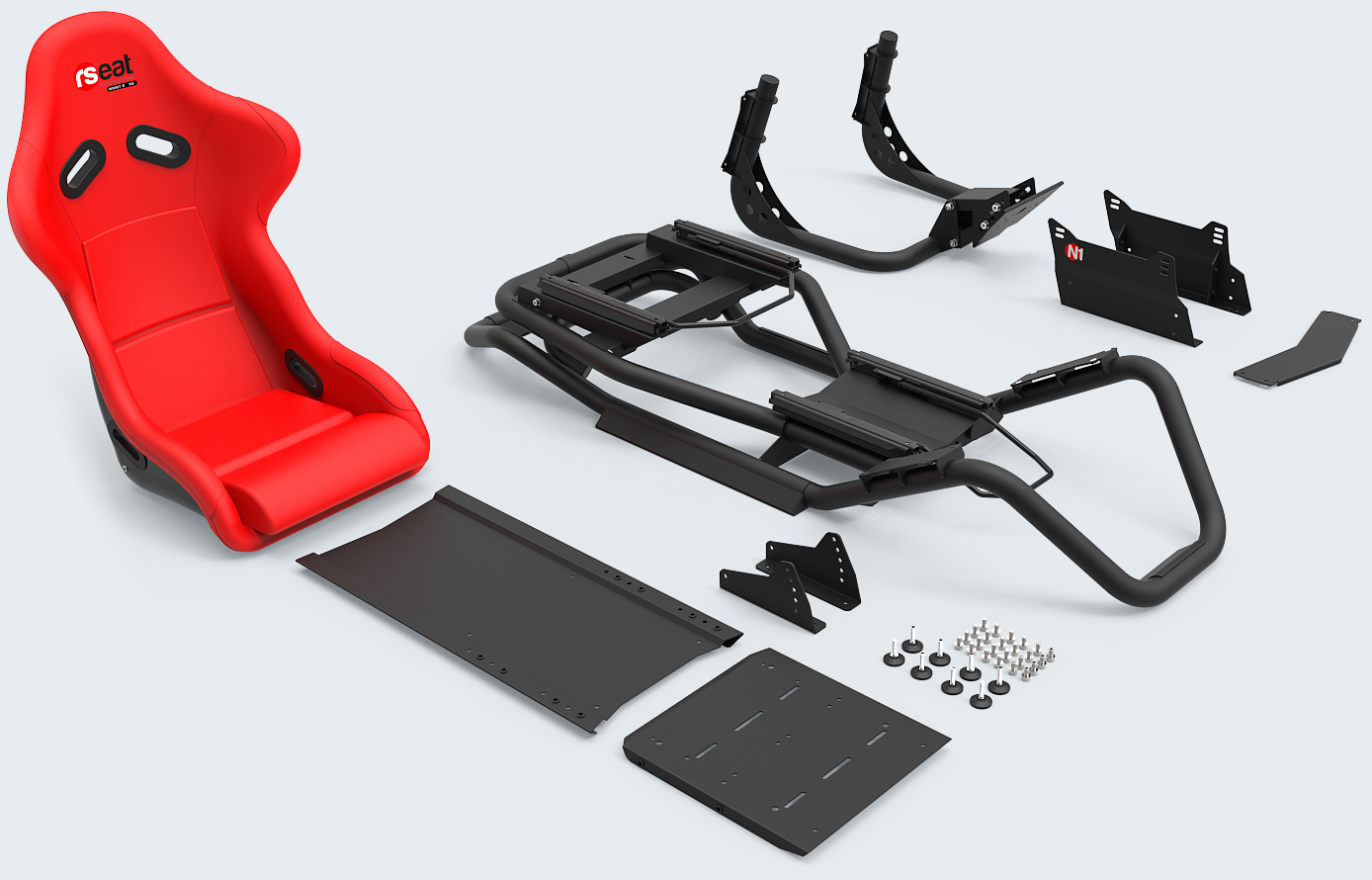

What's Included

  1. Racing seat finished in Alcantara®
  2. Chassis body (including seat sliders and pedal plate sliders)
  3. Pedals Support
  4. Wheel Support
  5. Seat L mounts
  6.  Assembly instruction with tools and screws included to attach you wheel, pedals and shifter
  7. Carton box and bubble wrap protection inside the box to prevent damages on transit. N.W 100kg

Box 1 Dimensions:  Packaging Size Box 1: L x W x H 185 x 65 x H30cm (72.84" x 25.6" x 11.8" ) G.W 70kg (154lbs)

Box 2 Dimensions: L x W x H 97 x 64 x H48cm (38.2" x 25.2" x 18.9" )  G.W 30kg (66lbs)

What's in the box :
