RSeat S1 Alcantara

£1,299.99
  • RSeat S1 Alcantara
  • RSeat S1 Alcantara
  • RSeat S1 Alcantara
  • RSeat S1 Alcantara
  • RSeat S1 Alcantara
  • RSeat S1 Alcantara

RSeat S1 Alcantara

£1,299.99
£1,299.99
1

OVERVIEW

ADVANCED COCKPIT
  • NEW! S1 is designed to be used as flight simulator rig allowing installing Throttle and joystick (Thrustmaster HOTAS Ready, on both left and right side) as well as pedals, speakers, buttkicker.
  • NEW! Pedals with sliders for easy adjustment.
  • Support PC, PS3, PS4, XBOX 360, XBOX One (check what's supported tab below).
  • Applicable for users from 127cm (4’2″) up to 200cm+ (6’67″+).
  • Seat carry weight up to 140kg (308 lbs).
  • Seating position Rally/GT.
  • Modular Frame (You can upgrade with features).
  • Seat Sliders Included.
  • Footprint dimensions: L x W x H 1500 x 630 mm. x 1180 mm. (59” x 24.8” x 46.5”)
  • All tools and screws to attach your wheel and pedals are provided.
  • 2 year Warranty on all RSeat Manufactured components including chassis and seat.
  • Packaging Box: L x W x H 125 x 65 x H55cm (49.2" x 25.6" x 21.6" )  Weight: 55kg (121lbs)
  • Made in EU

Chassis

Made of Laser cut carbon steel and CNC bended round tubes.

Comes in Black & Red matte powder coat paint.

  • Frame step on the ground by 4 adjustable legs (37mm diameter each).
  • Casters Ready (M8 Thread)
  • Wheel console made of Mandrel Bend carbon steel tubes NPS 1-1/2 (Din 48.3mm)
  • Total height (with the seat): 1180 mm (46.5”)
  • Total width: 630 mm (24.8”)
  • Length: 1500 mm. (59”)
  • Pedal plate width 364 mm. (13.62”)
  • Pedal plate adjust from full flat up to 30°
  • Wheel mounting plate allow to adjust height of the wheel ±120 mm (4.72”)
  • Slide pedals front-backwards with sliders (rails) ±200mm (7.87inch)
  • Slide The seat front-backwards with sliders (rails) ±190mm (7.48inch)
  • Net weight: 48 kg (105 lbs)
  • Gross weight 55 kg (121 lbs) The S1 with the packaging.
  • Ready for upgrades

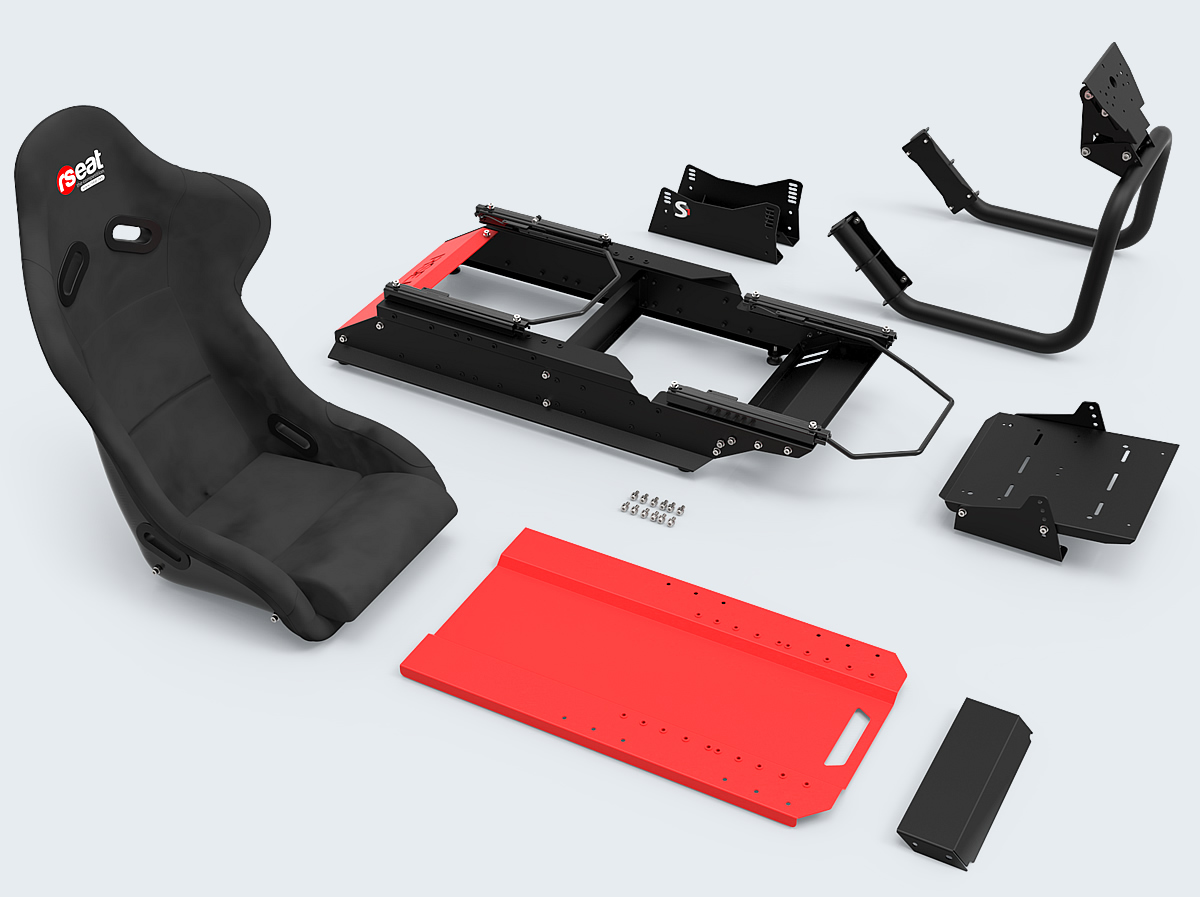

What's Included

  • Racing seat with Synthetic Leather available in 3 colors Black, Red, White, and Alcantara® as an option
  • Chassis body (including seat sliders and pedal plate sliders)
  • Pedals Support
  • Wheel Support
  • Seat L mounts
  • Assembly instruction with tools and screws included to attach your wheel, pedals and shifter


Box Dimensions: L x W x H: 125 x 65 x H55cm (49.2" x 25.6" x 21.6" ) G.W 55kg (121lbs)




Accessories available in options :

BUTTKICKER UPGRADE KIT

  • Direct fitment on all S1 chassis
  • Easy Installation
  • Available in Black, White or Silver powder coat paint
  • Assembly instructions provided
  • Support all Buttkicker models including Buttkicker ™ Gamer 2, Pearl ™ THMP1, ButtKicker ™ Simulation Kit, Mini LFE
  • Weight: 6kg (13.22 lbs)
  • Box dimensions: 45cm x 38cm x 19cm (17.7” x 15” x 7.5”)
  • Assembly tools and screws provided.

TABLET AND BUTTONBOX UPGRADE KIT

  • Available in Black, White or Silver powder coat paint
  • Made of laser cut carbon steel and round tubes.
  • Angle and tilt adjustable (both tablet mount and buttonbox mount).
  • Direct fitment on all S1 chassis
  • Assembly instructions provided
  • Fits 5″-10.1″ tablets and all Smartphones
  • Buttonbox mount support: DSD Track Boss, DSD Black Max, DSD Black Max II Buttonboxes and more.
  • Weight: 6kg (13.22 lbs)
  • Box dimensions: 45cm x 24cm x 13cm (17.7” x 9.45” x 5.12”)
​​

SHIFTER/HANDBRAKE UPGRADE KIT

  • NEW! Handbrake Support for the shifter mount. You can attach it on both Left or Right side of the shifter.
  • The most sturdy Shifter mount on the market today!
  • Can adjust the handbrake angle and position.
  • Rise/ Lower / Tilt adjustment.
  • Shifter can be installed on both Left or right side of the S1 chassis.
  • Available in Black, White or Silver powder coat paint.
  • Made of laser cut carbon steel and round tubes.
  • Adjustable in height, tilt and position.
  • Direct fitment on all S1 chassis.
  • Assembly instructions provided.
  • Weight: 15kg (33 lbs).
  • Box dimensions: 51cm x 25cm x 19cm (20” x 9.85” x 7.5”).
  • Assembly tools and screws provided.
​

KEYBOARD AND MOUSE TRAY UPGRADE KIT

  • NEW! User is able to place the keyboard and mouse tray infront of the wheel.
  • Available in Black, White or Silver powder coat paint.
  • Made of laser cut carbon steel and round tubes.
  • Fully Adjustable.
  • Direct fitment on all S1 chassis.
  • Assembly instructions provided.
  • Keyboard tray dimensions 720 mm. x 225 mm. (28.34” x 8.85”).
  • Mouse tray diameter – 200 mm. (7.87”).
  • Weight: 11kg (24.25 lbs).
  • Box dimensions: 74cm x 25cm x 15cm (29.13” x 9.84” x 5.9”).
  • Assembly tools and screws provided.
​

SPEAKERS MOUNT UPGRADE KIT

  • Available in Black, White or Silver powder coat paint.
  • Made of laser cut carbon steel.
  • Direct fitment on all S1 chassis.
  • Assembly instructions provided.
  • Support Logitech® Z906 5.1 sound system. Other Speaker systems with wall mount support can be attached.
  • Assembly tools and screws provided.
  • Weight: 5kg (11 lbs).
  • Box dimensions: 30cm x 30cm x 19cm ( 11.8” x 11.8” x 7.4”).
  • Assembly tools and screws provided.
​

NEW! S1 FLIGHT MOUNT UPGRADE KIT

  • NEW! FLIGHT Mount upgrade kit Thrustmaster HOTAS Ready.
  • Fully adjustable position on both left and right Joystick/Throttle mounts.
  • Available in Black, White or Silver powder coat paint.
  • Made of laser cut carbon steel and round tubes.
  • Adjustable in hight, tilt and possition.
  • Direct fitment on all S1 chassis.
  • Assembly instructions provided.
  • Weight: 24kg (52.9 lbs).
  • Box dimensions: 51cm x 51cm x 19cm (20” x 20” x 7.5”).
  • Assembly tools and screws provided.

  • If you have any questions, please contact us by Email (sales@upshiftstore.co.uk),  Call 0333 577 1242 to speak to an Expert Sim Racer, or use our Live Chat or DM us on Messenger to chat with an Expert Sim Racer - our Sim Racing Experts are here to help you!
